9800 Sliding Windows

With long-lasting performance and accessible convenience, the 9800 Slider window delivers open views and a wide selection of customizable features.

How To Buy
CONVENIENT OPERATION

Both sash easily glide open horizontally for fresh air.

ENHANCED INSULATION

Glass units are set ¾ inch into the sash, providing optimal insulation and interior comfort.

BUILT TO LAST

Fusion-welded construction creates a one-piece frame and sash for reliable strength and durability.

CUSTOM MADE

Custom built to the exact size and specifications of your home to ensure proper installation and performance.

9800 Sliding Window

  • 1. FLEXIBLE WINDOW STYLE

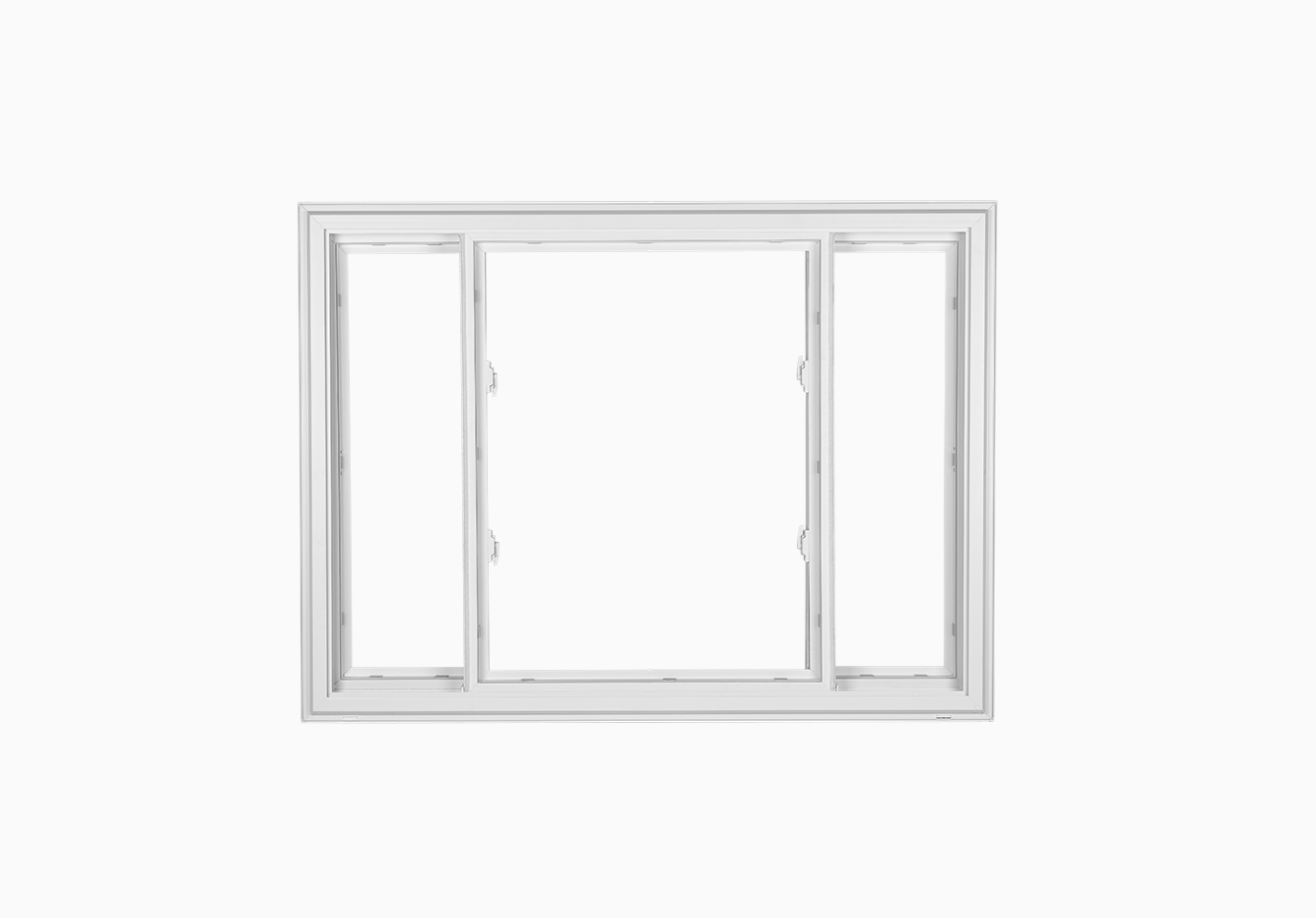

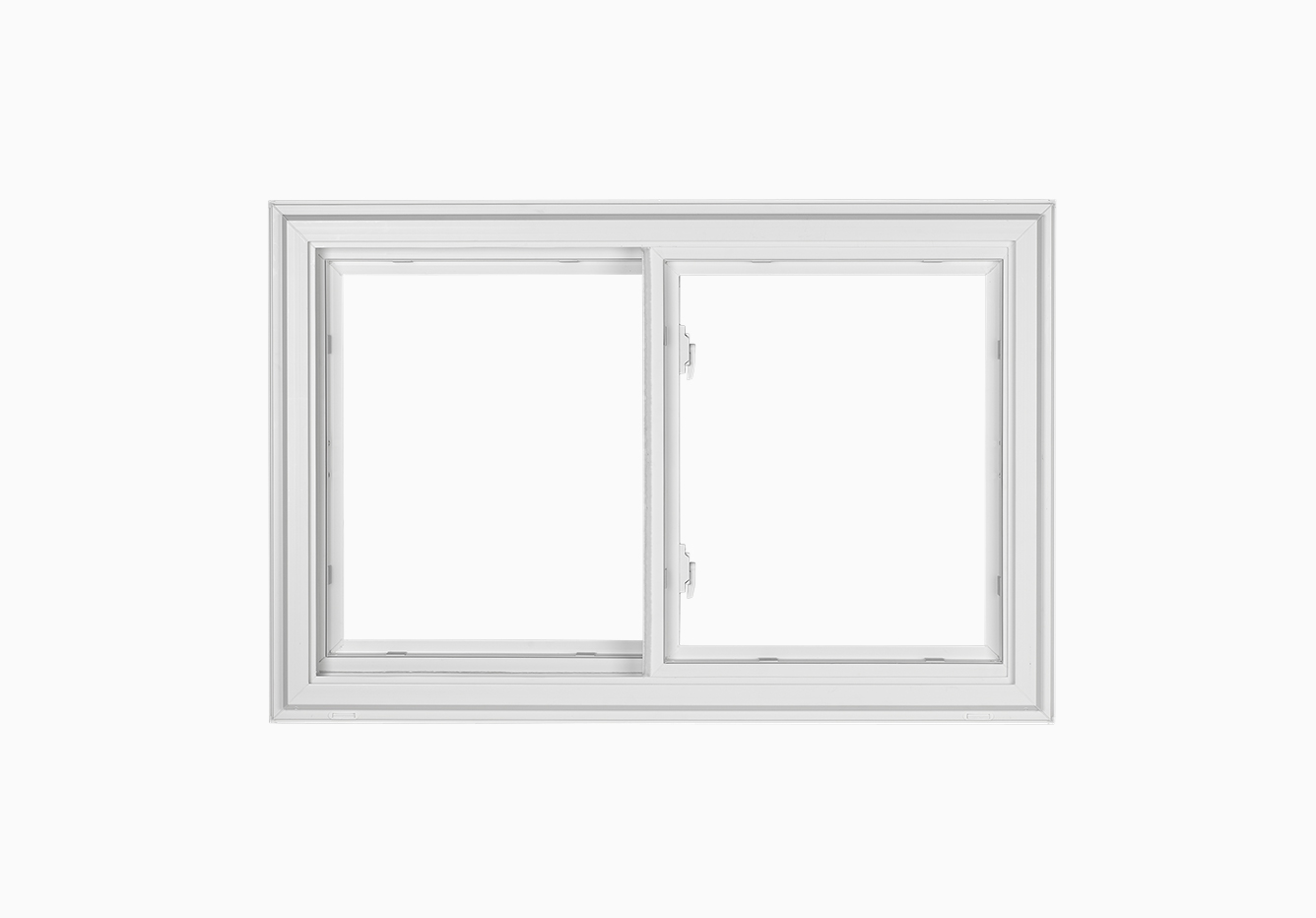

    Sliding windows are available in 2-or 3-lite configurations. The end vent slider window has three lites with operable end vents, making it perfect for replacing picture windows to gain ventilation.

  • 2. DURABLE CONSTRUCTION

    Fusion-welded construction provides unmatched durability, strength and performance.

  • 3. PROTECTION FROM THE ELEMENTS

    Interlocking meeting stiles create a tight seal against air and rain infiltration.

  • 4. FUNCTIONAL DESIGN

    Contoured pull stiles are easy to access and molded into the sash for dependable performance over time.

  • 5. SMOOTH OPERATION

    Corrosion-resistant* rollers and anti-bowing roller track provide a lifetime of convenient operation.

  • 6. EFFICIENT INSULATION

    Multi-chambered vinyl profiles increase strength and thermal efficiency. Advanced weather stripping creates a strong barrier against air and water infiltration.

  • 7. EASY TO CLEAN

    Lift-out sash can be removed to assist in maintenance.

  • 8. SUPERIOR SAFETY & SECURITY

    Dual, low-profile, color-matched cam locks secure the window tightly against the elements. Air Lok™ can be engaged to limit the amount a window can be opened for safer ventilation.


images 1
ENERGY STAR® WINDOWS

Simonton offers optional region-specific ENERGY STAR glass packages designed to deliver optimal energy performance and comfort in any climate.

images 1
AAMA GOLD CERTIFICATION

The AAMA Gold Label on Simonton-built windows and doors verifies our products are manufactured to the industry-leading AAMA Gold Certification Program. This quality assurance testing delivers durable, weather-resistant and energy-efficient products for your home.

Glass packages impact your heating and cooling costs, as well as security, acoustics and more. Customize your windows for desired performance and to meet ENERGY STAR® guidelines in any region.

ProSolar® Low-E Glass
  • Standard

    ProSolar® Low-E Glass helps keep warm air in during the winter months. In summer, it helps deflect external heat and retains cooled air.

  • Optional

    ProSolar® Shade Low-E Glass offers superior solar control and insulating performance, making it ideal for warmer climates with more intensive interior cooling needs.

  • Optional

    ProSolar® Sun Low-E Glass lets in the warming sun’s rays while blocking heat loss, helping to keep homes warm in cooler climates that require more energy to heat.


Gas Fill
Standard

Argon gas (six times denser than air) is sealed between the glass panes to increase insulation and reduce energy loss.

Optional

Upgrade to Krypton gas (twelve times denser than air) for maximum thermal efficiency.

Glass Upgrades
  • Triple-pane Glass

    Three panes of double-strength glass create two separate air spaces for exceptional thermal performance and interior comfort.

  • Sound & Security Glass

    Laminated glass consists of a durable interlayer sealed between two layers of glass that resists forced entry, significantly diminishes unwanted sound and deflects up to 99% of damaging ultraviolet(UV) rays that can cause interior fading.

  • Double-strength Glass

    Double-strength is more resistant to breakage than single-strength glass and offers increased sound control.

  • Safety Glass

    Heat-strengthened tempered glass is stronger than regular glass and safely breaks down into pebbles if broken. Tempered glass is often a building code requirement for use in bathrooms and windows near the floor.

  • Privacy Glass

    Obscure glass has a textured pattern to maximize privacy while allowing ample natural light into your home.

  • Tinted Glass

    Bronze or gray tinted glass helps control solar heat gain and reduce glare and visibility into your home.


Gas Fill
Standard

Argon gas (six times denser than air) is sealed between the glass panes to increase insulation and reduce energy loss.

Optional

Upgrade to Krypton gas (twelve times denser than air) for maximum thermal efficiency.

Spacer Systems

Glass panes are separated by a spacer system, which helps seal in functional gas and create an airtight seal.

Standard

Intercept® spacer system helps keep glass warm and expands and contracts for reduced seal failure.

Optional

The Supercept™ spacer system utilizes a stainless-steel alloy that offers increased durability and thermal efficiency.

Optional

The non-metallic foam Super Spacer® is non-conductive and virtually eliminates temperature transfer.

9800 Design Options

Cam Locks

The cam lock pulls your window sash together to keep it locked, secure and weather resistant. Cam locks are found on double hung and sliding windows.

Color-matched Cam Lock Finishes

Nesting Crank Handle

Casement and awning windows feature a convenient nesting handle that folds neatly away into the base and a multi-point locking lever that secures the window.

Color-matched Crank Handle & Lock Finishes

Simonton 9800 windows feature an energy-efficient 3/4′′ insulating glass unit with ProSolar® Low-E Glass, Argon gas and an Intercept® spacer system. Additional glass options enhance acoustics, security, privacy and fade protection.

  • ENERGY STAR® Certified

    Simonton offers optional region-specific glass packages that meet ENERGY STAR guidelines for optimal energy performance and comfort in any climate.

  • NEW ProSolar Glass Options

    All ProSolar glass packages are available with a PLUS option. PLUS indicates the addition of a 4th surface Low-E glass, which reflects even more heat back into the room, helping to make your living space feel warmer and more comfortable in the colder Northern climates.

  • Triple-pane Glass

    Three panes of double-strength glass create two separate air spaces for optimal thermal performance and interior comfort.

  • Privacy Glass

    Obscure glass has a textured pattern to maximize privacy while allowing ample natural light into your home.

  • Tinted Glass

    Bronze or gray tinted glass helps control solar heat gain and reduce glare and visibility into your home.

  • Double-Strength Glass

    Double-strength is more resistant to breakage than single-strength glass and offers increased sound control.

  • ENERGY STAR Most-Efficient

    Select 9800 window styles with triple-pane glass are recognized as Most Efficient by ENERGY STAR in 2022 identifying the best performing ENERGY STAR windows available.

  • Sound & Security Glass

    Laminated glass consists of a durable interlayer sealed between two layers of glass that withstands forced entry, greatly reduces unwanted sound and deflects up to 99% of damaging ultraviolet (UV) rays that can cause interior fading.

  • Coastal Impact Protection

    Offering 24/7 impact protection and durable weather resistance, 5500 windows with SafePoint® impact-resistant laminated glass deliver Missile C level certification for homes in inland coastal areas.

  • Safety Glass

    Heat-strengthened tempered glass is stronger than regular glass and safely breaks down into pebbles if broken. Tempered glass is often a building code requirement for use in bathrooms and windows near the floor.

Choose architecturally inspired grille profiles and patterns to highlight your home’s character. Grilles are placed between the glass to create a smooth, easy-to-clean surface on the inside and outside of your home.

Simonton 9800 operable windows include an extruded screen frame with matching finishes and fiber glass screen mesh designed to allow fresh air in and help keep insects out.

Double Hung & Sliding Window Screens

Double hung and slider windows feature a durable extruded screen frame with a concealed spring system for easy removal. The standard half screen can be upgraded to full screen on select windows. Choose aluminum screen mesh for increased durability.

Casement & Awning Window Screens

Hinged windows have a full extruded screen frame with fiber glass screen mesh placed on the window’s interior.

How To Buy

Simonton windows and doors are sold through our large network of trusted contractors, retail stores and distributor locations.
