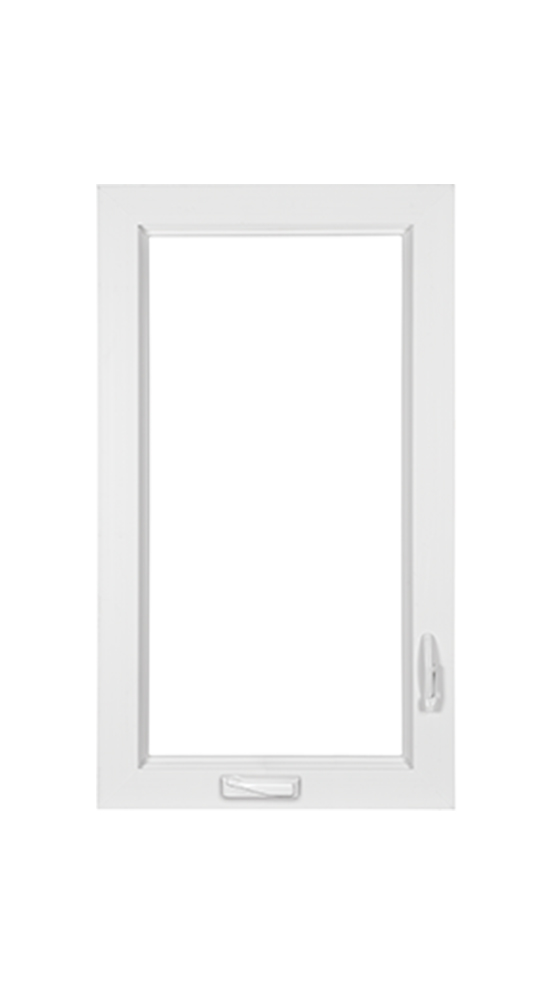

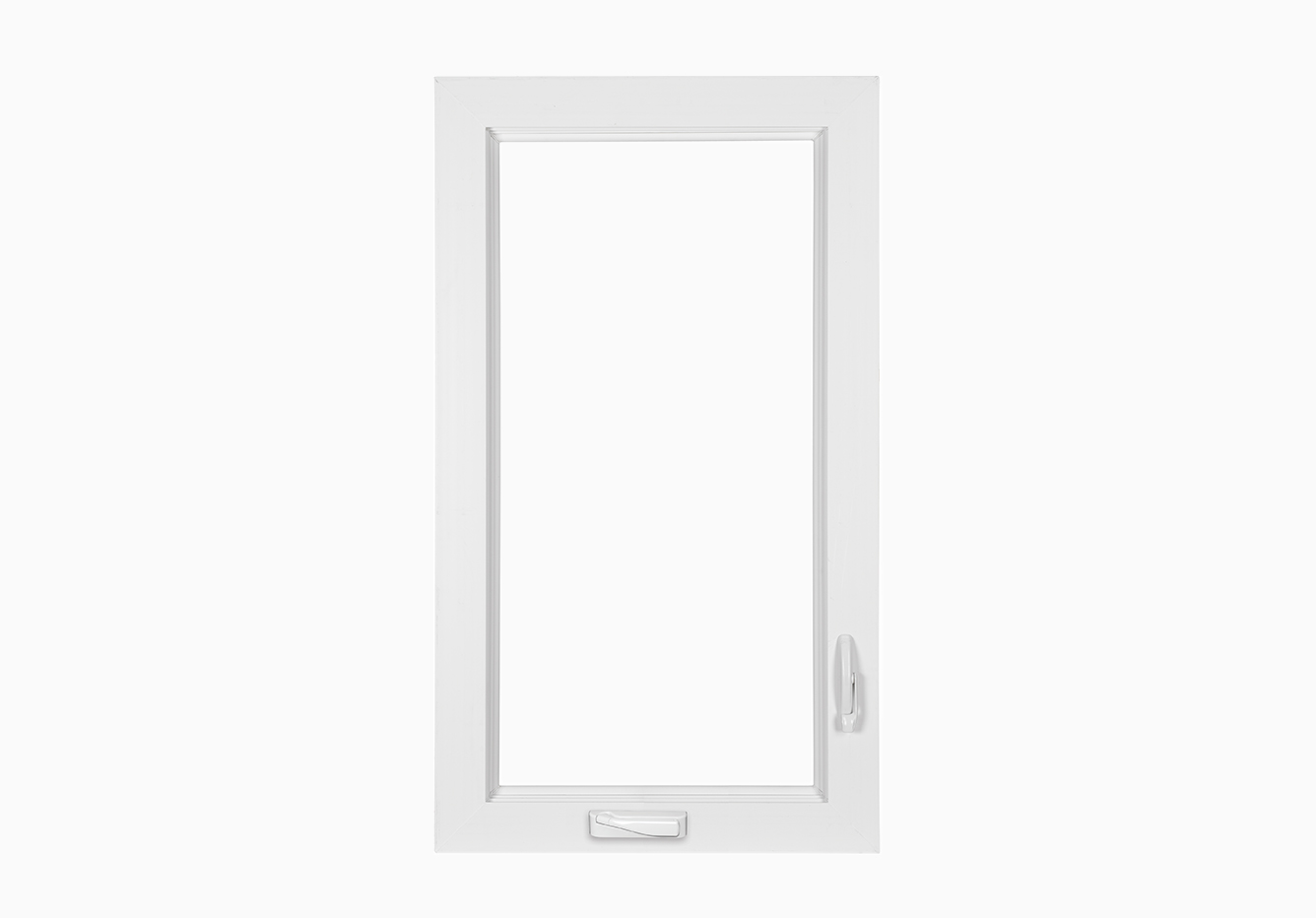

9800 Casement Window

With superior energy and weather tight performance, the 9800 Casement window offers expansive views along with vast color, hardware and grille customizations.

EASY CARE

Fully opening sash allows easy in-home cleaning of the interior and exterior.

ENHANCED INSULATION

Sash securely closes around advanced weather stripping for optimal insulation and interior comfort.

BUILT TO LAST

Fusion-welded construction creates a one-piece frame and sash for reliable strength and durability.

CUSTOM MADE

Custom built to the exact size and specifications for your home to ensure proper installation and performance.

9800 Casement

  • 1. COMPLEMENTARY STYLE

    Attractive frame and sash complement traditional to contemporary home styles.

  • 2. DURABLE CONSTRUCTION

    Fusion-welded frame and sash create a strong, weathertight unit for unmatched durability, longevity and performance.

  • 3. CONVENIENT OPERATION

    The nesting crank handle neatly folds into the base and won’t interfere with drapes and blinds. The handle is easily accessed and engaged over sinks and countertops.

  • 4. SUPERIOR SAFETY & SECURITY

    Multi-point locking system tightly secures the window with one convenient handle.

  • 5. EFFECTIVE INSULATION

    Sash tightly engages around three lines of heavy-duty weather stripping for advanced weather ability and energy efficiency.

  • 6. EASY TO CLEAN

    Sash opens a full 90 degrees* so the interior and exterior glass can be cleaned from inside your home.

  • 7. YEARS AND YEARS OF USE

    Sturdy, stainless steel hardware supports the sash and provides years of effortless operation.

  • 8. AMPLE VENTILATION

    Full interior extruded screen with fiberglass mesh allows you to enjoy fresh air while helping keep bugs out; integral screen tracks provide a streamlined appearance


images 1
ENERGY STAR® WINDOWS

Simonton offers optional region-specific ENERGY STAR glass packages designed to deliver optimal energy performance and comfort in any climate.

images 1
AAMA GOLD CERTIFICATION

The AAMA Gold Label on Simonton-built windows and doors verifies our products are manufactured to the industry-leading AAMA Gold Certification Program. This quality assurance testing delivers durable, weather-resistant and energy-efficient products for your home.

COLONIAL CASEMENT

The colonial casement features a faux meeting rail, so it provides the appearance of a double hung window, but it functions like a casement window.

Glass packages impact your heating and cooling costs, as well as security, acoustics and more. Customize your windows for desired performance and to meet ENERGY STAR® guidelines in any region.

ProSolar® Low-E Glass
  • Standard

    ProSolar® Low-E Glass helps keep warm air in during the winter months. In summer, it helps deflect external heat and retains cooled air.

  • Optional

    ProSolar® Shade Low-E Glass offers superior solar control and insulating performance, making it ideal for warmer climates with more intensive interior cooling needs.

  • Optional

    ProSolar® Sun Low-E Glass lets in the warming sun’s rays while blocking heat loss, helping to keep homes warm in cooler climates that require more energy to heat.


Gas Fill
Standard

Argon gas (six times denser than air) is sealed between the glass panes to increase insulation and reduce energy loss.

Optional

Upgrade to Krypton gas (twelve times denser than air) for maximum thermal efficiency.

Glass Upgrades
  • Triple-pane Glass

    Three panes of double-strength glass create two separate air spaces for exceptional thermal performance and interior comfort.

  • Sound & Security Glass

    Laminated glass consists of a durable interlayer sealed between two layers of glass that resists forced entry, significantly diminishes unwanted sound and deflects up to 99% of damaging ultraviolet (UV) rays that can cause interior fading.

  • Double-strength Glass

    Double-strength is more resistant to breakage than single-strength glass and offers increased sound control.

  • Safety Glass

    Heat-strengthened tempered glass is stronger than regular glass and safely breaks down into pebbles if broken. Tempered glass is often a building code requirement for use in bathrooms and windows near the floor.

  • Privacy Glass

    Obscure glass has a textured pattern to maximize privacy while allowing ample natural light into your home.

  • Tinted Glass

    Bronze or gray tinted glass helps control solar heat gain and reduce glare and visibility into your home.


Gas Fill
Standard

Argon gas (six times denser than air) is sealed between the glass panes to increase insulation and reduce energy loss.

Optional

Upgrade to Krypton gas (twelve times denser than air) for maximum thermal efficiency.

Spacer Systems

Glass panes are separated by a spacer system, which helps seal in functional gas and create an airtight seal.

Standard

Intercept® spacer system helps keep glass warm and expands and contracts forreduced seal failure.

Optional

The Supercept™ spacer system utilizes a stainless-steel alloy that offers increased durability and thermal efficiency

Optional

The non-metallic foam Super Spacer® is non-conductive and virtually eliminates temperature transfer.

9800 Casement–MAX UI 116

9800 Design Options

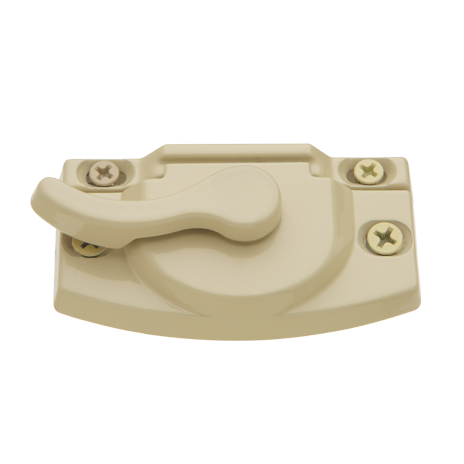

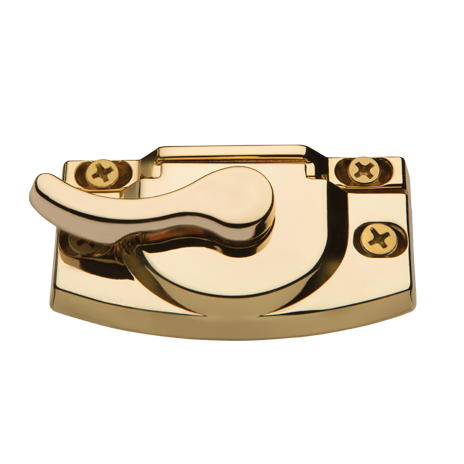

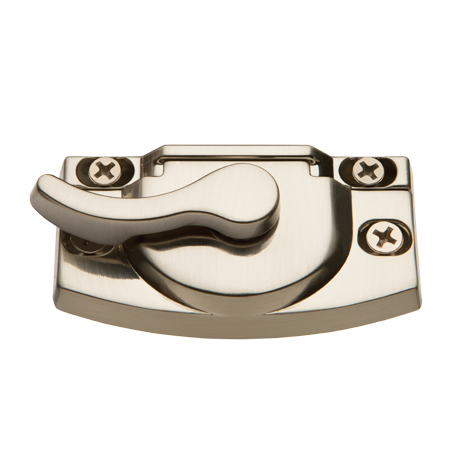

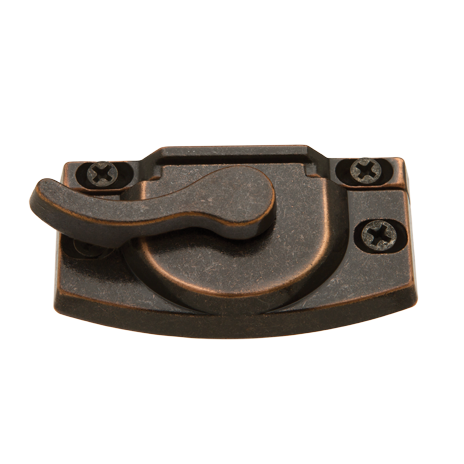

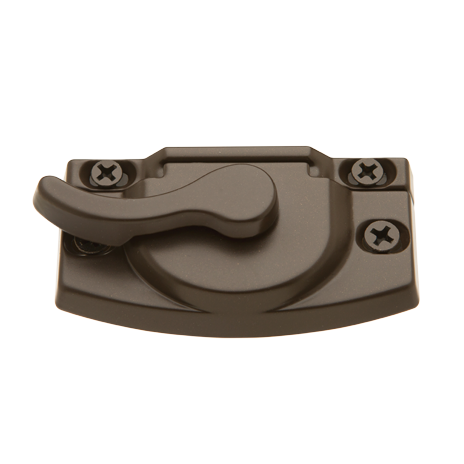

Cam Locks

The cam lock pulls your window sash together to keep it locked, secure and weather resistant. Cam locks are found on double hung and sliding windows.

Color-matched Cam Lock Finishes

Nesting Crank Handle

Casement and awning windows feature a convenient nesting handle that folds neatly away into the base and a multi-point locking lever that secures the window.

Color-matched Crank Handle & Lock Finishes

Simonton 9800 windows feature an energy-efficient 3/4′′ insulating glass unit with ProSolar® Low-E Glass, Argon gas and an Intercept® spacer system. Additional glass options enhance acoustics, security, privacy and fade protection.

  • ENERGY STAR® Certified

    Simonton offers optional region-specific glass packages that meet ENERGY STAR guidelines for optimal energy performance and comfort in any climate.

  • NEW ProSolar Glass Options

    All ProSolar glass packages are available with a PLUS option. PLUS indicates the addition of a 4th surface Low-E glass, which reflects even more heat back into the room, helping to make your living space feel warmer and more comfortable in the colder Northern climates.

  • Triple-pane Glass

    Three panes of double-strength glass create two separate air spaces for optimal thermal performance and interior comfort.

  • Privacy Glass

    Obscure glass has a textured pattern to maximize privacy while allowing ample natural light into your home.

  • Tinted Glass

    Bronze or gray tinted glass helps control solar heat gain and reduce glare and visibility into your home.

  • Double-Strength Glass

    Double-strength is more resistant to breakage than single-strength glass and offers increased sound control.

  • ENERGY STAR Most-Efficient

    Select 9800 window styles with triple-pane glass are recognized as Most Efficient by ENERGY STAR in 2022 identifying the best performing ENERGY STAR windows available.

  • Sound & Security Glass

    Laminated glass consists of a durable interlayer sealed between two layers of glass that withstands forced entry, greatly reduces unwanted sound and deflects up to 99% of damaging ultraviolet (UV) rays that can cause interior fading.

  • Coastal Impact Protection

    Offering 24/7 impact protection and durable weather resistance, 5500 windows with SafePoint® impact-resistant laminated glass deliver Missile C level certification for homes in inland coastal areas.

  • Safety Glass

    Heat-strengthened tempered glass is stronger than regular glass and safely breaks down into pebbles if broken. Tempered glass is often a building code requirement for use in bathrooms and windows near the floor.

Choose architecturally inspired grille profiles and patterns to highlight your home’s character. Grilles are placed between the glass to create a smooth, easy-to-clean surface on the inside and outside of your home.

Simonton 9800 operable windows include an extruded screen frame with matching finishes and fiber glass screen mesh designed to allow fresh air in and help keep insects out.

Double Hung & Sliding Window Screens

Double hung and slider windows feature a durable extruded screen frame with a concealed spring system for easy removal. The standard half screen can be upgraded to full screen on select windows. Choose aluminum screen mesh for increased durability.

Casement & Awning Window Screens

Hinged windows have a full extruded screen frame with fiber glass screen mesh placed on the window’s interior.

Resources and Downloads

How To Buy

Simonton windows and doors are sold through our large network of trusted contractors, retail stores and distributor locations.
